Why B2B Buyers Trust Our Floor
How our disciplined manufacturing process translates directly into lower procurement risk for your brand.
<0.1% Field Return Rate
100% full-function audit and 72-hour burn-in aging eliminate early-life failures before shipment.
Traceable Component Batches
Zone-coded warehouse controls and lot tracking prevent mixed-batch defects and ensure accountability.
Transparent SOPs
Open floor policies, live video verification, and standardized audit checklists for OEM/ODM procurement.
The 11 Quality Control Gates
Explore our verified quality gates protecting your trail camera orders.

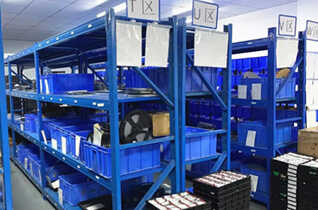

Zone-coded component warehouse with strict IQC pass/fail tags.
STEP01
Raw Materials & IQC Zone Management
Common Shortcut: Unchecked raw component storage leading to lot confusion and high defect rates.
Willfine Standard: Zone-coded warehouse (T/U/V/W) with strict IQC pass/fail isolation.

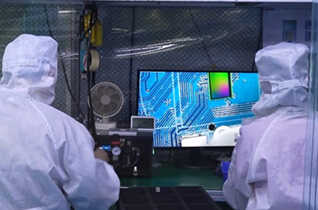

Air-shower ions blown onto a CMOS sensor inside the bench.
STEP02
Sensor Cleaning & Dust-Free Bench Assembly
Common Shortcut: Assembling optical sensors in open air, resulting in black spots and image flaws.
Willfine Standard: Dust-free clean bench with air-shower cleaning before sealing CMOS window.

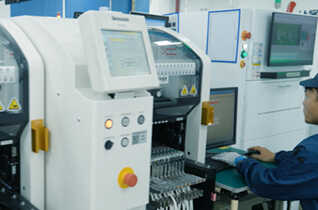

High-speed SMT line & Automated Optical Inspection (AOI) screen.
STEP03
SMT Surface Mounting & AOI Inspection
Common Shortcut: Manual soldering on mainboards leading to cold joints and signal instability.
Willfine Standard: Fully automated SMT placement with Automated Optical Inspection (AOI).

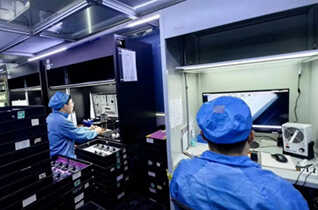

Darkroom MTF chart focus alignment and torque locking process.
STEP04
Lens MTF Focus Calibration
Common Shortcut: Manual visual focus adjustment without locking torque value.
Willfine Standard: Darkroom MTF chart alignment to prevent transit focus drift.

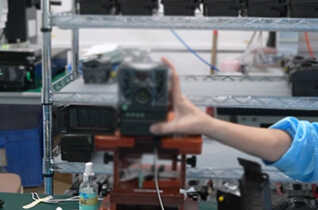

Sub-0.2s PIR motion sensor response timer on test bench.
STEP05
PIR Motion Sensor Calibration & Trigger Testing
Common Shortcut: Uncalibrated PIR sensors causing frequent false triggers or missed wildlife shots.
Willfine Standard: Multi-zone PIR sensitivity calibration ensuring sub-0.2s ultra-fast trigger speeds.
Photo: Darkroom IR LED night vision light pattern uniform alignment.
STEP06
940nm / 850nm IR LED Night Vision Alignment
Common Shortcut: Uneven IR LED intensity causing overexposed centers or dark edges at night.
Willfine Standard: Optical darkroom alignment for balanced 80ft+ invisible night illumination.

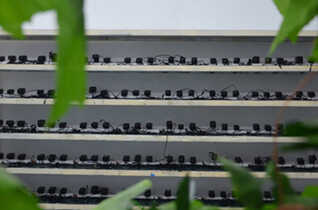

P100% full-capacity 72-hour power-on aging rack in action.
STEP07
72-Hour Continuous Aging & Burn-in Test
Common Shortcut: Skipping burn-in tests or sampling only 5% of units to speed up delivery.
Willfine Standard: 100% full power-on burn-in rack testing for 72 hours to eliminate early chip failures.
Positive air-pressure chamber leak tester showing 0.00 kPa Pass screen.
STEP08
IP66 Waterproof Positive Pressure Chamber Test
Common Shortcut: Basic water spraying or superficial seals that lead to moisture leaks in harsh winters.
Willfine Standard: Positive air-pressure chamber testing to verify true IP66 housing seal integrity.

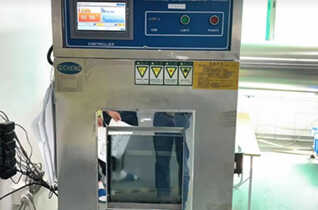

Programmable thermal chamber operating between -20°C and +60°C.
STEP09
Extreme Thermal Chamber Cycling (-20°C to +60°C)
Common Shortcut: Testing at room temperature only, resulting in freeze-ups or lens fogging outdoors.
Willfine Standard: Environmental thermal cycling to guarantee stable cellular connectivity in extreme climates.

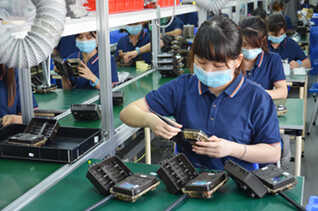

OQC inspector performing 4G network SIM test and barcode SN scan.
STEP10
100% Outgoing Quality Control (OQC) Full Inspection
Common Shortcut: Random sampling inspection before shipment, letting minor cosmetic/button flaws slip by.
Willfine Standard: 100% full-function, button, SIM card slot, and cosmetic inspection prior to final sealing.
Photo: ISTA-certified export cartons with customized OEM barcode labels.
STEP11
Drop-Tested Export Packaging & Barcode Logistics
Common Shortcut: Thin inner cartons leading to crushed retail boxes during ocean or air freight.
Willfine Standard: ISTA-certified drop-tested master cartons with customized SKU barcode labeling for B2B brands.
In-House Quality Testing Equipment
Advanced testing instruments supporting our zero-defect quality promise.
Environmental Chamber
-20°C to +60°C thermal stress test

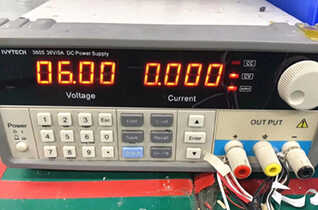

Programmable DC Power Supply
Functional testing and burn-in verification via stable DC output

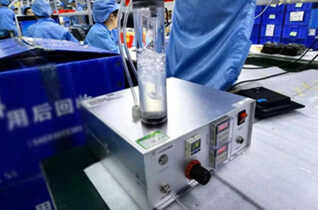

Air Leakage Tester
Positive pressure IP66 seal verification

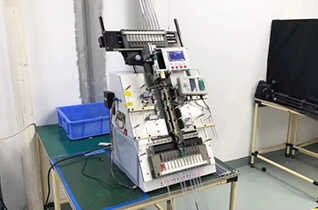

Auto Taping & Sorting Machine
Vision-based sorting and carrier taping for final packaging
Audit Checklist for Procurement Managers
Key verification checkpoints to bring to your next trail camera supplier audit.
| Inspection Point | Failure Mode Prevented | Willfine Floor Standard |
|---|---|---|
| CMOS Dust Window | Black spots on night photos | ISO dust-free bench + timer log |
| Lens Torque Lock | Blurry images after shipping | MTF chart calibration cert |
| IP67 Chamber Test | Water leaks during heavy rain | Positive air-pressure leak check |
| 72h Aging Line | Early-life chip failure | 100% power-on burn-in rack |
