Edge-AI Intelligence & Low-Power Telemetry | Enterprise OEM/ODM Solution for Field Operations
Integrated with 5×5 grid (25 detection zones), 30+ species AI recognition, and false motion filtering. Anti-interference PIR reduces false triggers by 20% under laboratory conditions.
Next-generation energy-saving circuitry minimizes power draw for both capture and cellular upload. Designed for off-grid operations, it provides long-lasting battery life to drastically reduce field maintenance trips and service intervals.
Refined PCB circuit layout and upgraded external antenna design boost signal gain strength by 15%. APP-side AI Super-Resolution and AI Night Vision Color yield ultra-clear visuals without requiring extra HD plan purchases.
Discover how the new TA100S Architecture delivers superior energy efficiency, smarter AI filtration, and stronger RF field connectivity compared to standard models.
24M HD
6528×3672 Stored Photo Resolution
FHD 1080P
H.265 Standard with Audio Support
Live Stream
720P Real-Time Stream
20m Range
60° Anti-Interference Digital PIR
940nm Stealth
54pcs IR LEDs (Up to 80ft Flash Range)
GPS Pinpoint
Supported Asset Tracking & GPS Alarm
Proportionally divides field of view into 25 zones (5×5 grid) and recognizes 30+ common species. PIR false triggers caused by non-moving objects, invalid zones, or non-target species will not be uploaded.
Refined PCB circuit layout and upgraded external antenna design deliver 15% increased signal gain strength, securing reliable connection on LTE Cat1 networks (EU & US versions).
Optimized low-power architecture reduces capture & transmission power usage by ~30%, operating in harsh outdoor environments from -20°C to 55°C.
Leverage free AI Super-Resolution and AI Night Vision Color within the “Trailcam Ace” app to reshape low-definition thumbnails into high-definition quality without buying an HD plan.
The TA100S transitions operations into real-time, AI-filtered remote intelligence. Purpose-built for high-efficiency field operations, minimizing false alarms and saving operational costs.
An ideal field asset for biodiversity studies. AI Species Recognition (30+ species) automatically categorizes wildlife while filtering out swaying branches, significantly saving researchers’ time and data bandwidth.
Fully compliant with global specifications. Built-in GPS support and 15% boosted signal reception keep large device deployments securely synced. Remote OTA firmware updates avoid costly field maintenance trips.
Protects remote investments without mainline power or local Wi-Fi. Features ≤ 500ms trigger speed and 5×5 grid detection zones, allowing managers to target critical access points and receive immediate alerts for intrusions.
A high-ROI hardware choice for outfitter networks. The invisible 940nm IR LEDs (up to 80ft flash range) and 720P live streaming allow wildlife managers to capture pristine scouting data without altering animal behavior.
Customized for agricultural integrators. Embedded GPS positioning combined with AI False Motion Detection ensures precise, real-time alerts if predators breach perimeter boundaries.
A dependable field recording solution. Efficient H.265 FHD 1080P video recording paired with up to 24M photos and integrated cloud storage removes the need for frequent manual SD card retrieval.

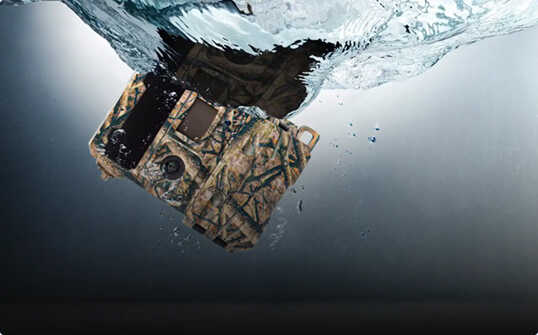

Meets strict commercial security requirements where Wi-Fi and power grid infrastructures are absent. Features 4G cellular streaming, IP66 rugged protection, and 30% lower power consumption for extended field deployment.
3 Megapixels CMOS | Aspect Ratio: 16:9
DFOV: 60° | F No.: F/2.0 | Auto IR-Cut-Remove (at night)
LTE Cat1 (EU: B1/B3/B7/B8/B20/B28, WCDMA B1/B8, GSM B3/B8 | US: B2/B4/B5/B12/B13, WCDMA B2/B4/B5)
GPS: Support | HTTP(s), TCP, Live Stream, MSDC Supported | WiFi, NFC, Bluetooth, MQTT: N/A
Infrared Triggered | Trigger Time: ≤ 500ms | Anti-interference Digital PIR | Range: Max 20m | Angle: 60°
Photo / Video / Photo+Video | Time Lapse: OFF/ON (00:00:05~23:59:59) | PIR Delay: OFF/ON (00:00:05~23:59:59)
AI-Smart Detection Zones (5×5 grid of 25 visual zones) | AI-Species Recognition (30+ species) | AI-False Motion Detection
24M (6528×3672) / 12M (4608×2592) / 8M (3840×2160) | Format: JPG
Send Photo Size: Thumbnail (640×360) | HD Photo Appointment: 3M (2304×1280)
1P / 2P / 3P / 4P / 5P | Multi Shot Interval: 1s
FHD-1080P (1920×1080) / HD-720P (1280×720) @ H.265 with Audio Support | Format: MP4
Video Length: 10s | Send Video Size: Thumbnail (640×360) | HD Video Appointment: 1080P / 720P | Live Stream: 720P
54pcs 940nm IR LEDs | Flash Range: Up to 80 feet
OFF / Level 1 / Level 2 / Level 3 / Level 4 / Level 5 / Level 6 / Level 7 / Level 8 / Level 9
Working Timer 1 & Timer 2: OFF/ON (00:00~23:59) | Max Num/Day: No Limit / 01~99
Real Time / Delay 0.5H (1/2/3/4/6/12/24H)
Standard SD Card Slot (8GB~32GB native exFAT limit; supports up to 128GB formatted via camera SD Format function) | Cloud Storage: Supported
“Trailcam Ace” (iOS & Android Supported)
12pcs AA Batteries (Alkaline / NI-MH / Lithium) | External DC Supply: 12V-2A Adapter (4.4mm*1.6mm DC Port)
Key Switch: 1pcs (ON/SETUP/OFF) | Button Switches: 4pcs (SYNC / Reset / SD Format / EJECT) | Type-C USB Port
Camera Status (Green) | SD Card Status (Green/Red) | Battery Status (Green/Red) | Signal Status (Green/Red) | Account Status (Green/Red)
Weight: 472g (with antenna, without batteries) | Dimensions: 141mm x 114mm x 91mm (without Antenna)
Waterproof Rating: IP66 | Operating Temp: -20℃ ~ 55℃ | Storage Temp: -25℃ ~ 60℃ | Humidity: 5% – 90% (Operating)
SD Card Update | USB Update | OTA Update Supported
CE, IP66, ROHS, FCC
Download official product manual, quick start guide, and specification sheets.
| OEM/ODM Customization | Customized brand firmware and housing branding start at 500 units. Prototype sample orders supported from 1 unit. |
| Production Lead Time | Samples: 3-5 working days. Standard Mass Bulk OEM Production: 15-25 days. |
| Package Specifications (Strictly per Manual) |
Standard Box Package Contents:
|
The TA100S significantly lowers field operational costs through two core innovations: Anti-interference PIR + AI false trigger filtering reduces false alarms by 20% (saving network data usage), and a low-power hardware architecture cuts power consumption by ~30% (capturing 4,000–6,000 photos on a full charge).
Built under professional manufacturing supervision, our hardware incorporates strict component testing to withstand extreme wilderness deployment across Europe, North America, and emerging markets.
