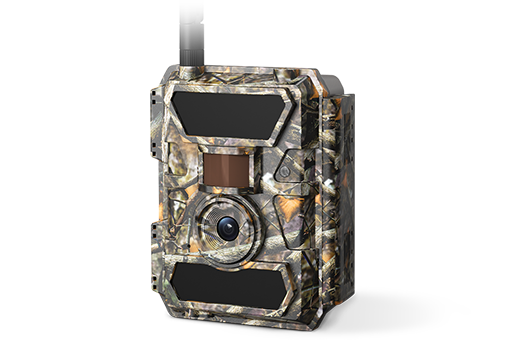

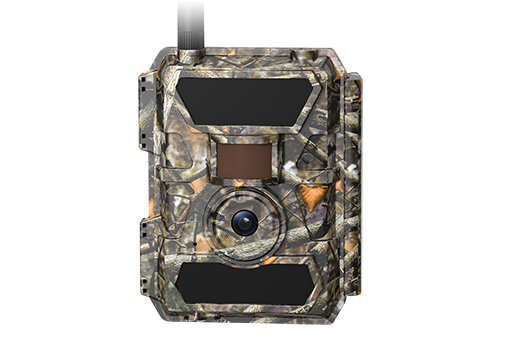

T4.0-CS 4G Trail Camera Main View

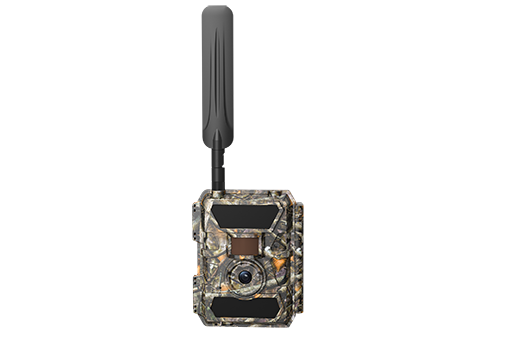

  • T4.0-CS Side View

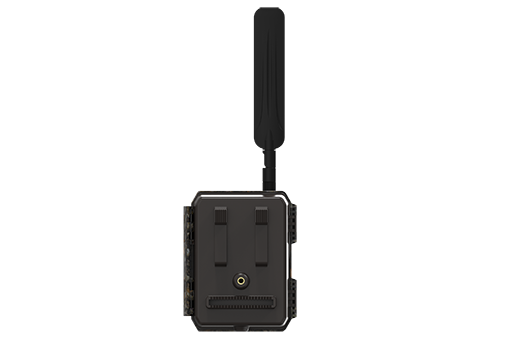

  • T4.0-CS Back View
  • T4.0-CS Internal Screen
T4.0-CS Mobile View 1
T4.0-CS Mobile View 2

T4.0-CS 4G LTE TRAIL CAMERA

Deep OEM/ODM Customization for European & North American Brands

Ultra-Low Standby & OTA Updates

Engineered with extreme low-power management for extended field deployment. Supports remote Over-the-Air updates to eliminate expensive maintenance site-trips.

0.2s Trigger & Optimized Data Costs

0.2s ultra-fast capture captures every critical moment. Cloud transmission logic is deeply optimized to compress data traffic, reducing recurring cellular costs for buyers.

IP66 Waterproof & Rugged Camouflage

Industrial-grade IP66 waterproof casing with 940nm no-glow infrared LEDs ensures total stealth and reliable 24/7 durability under harsh winter or rainforest climates.

Supply Ability: 300,000+ Units/Month | Samples: Available
  • 32MP Resolution32MPCrystal HD Image
  • 4G LTE Transmit4G LTEGlobal Bands
  • 65FT Detection65FTPIR Sensor Range
  • 0.2s Trigger Time0.2s-0.4sUltra-Fast Trigger
  • 940nm No-Glow940nmInvisible Night Vision
  • 2.0 Inch TFT Screen2.0″ TFTBuilt-in Color LCD
Advanced Multi-capture Modes
High-Quality Captures

Capture stunning visuals with Pic/Vid/Pic+Vid modes, multi-shot options (1P to 5P), and advanced time-lapse and working timer settings for precise, customizable results.

4G Global Connectivity
Global Connectivity

Stay connected with 4G LTE support across 100+ networks worldwide, featuring an optimized cellular architecture for maximum signal stability in remote regions.

IP66 Waterproof Tested
Enhanced Durability & Low Drain

Powered by 12 AA batteries, the camera benefits from severe hardware standby current sleep-logic to deliver up to 6 months of operating time alongside verified IP66 weatherproof defense.

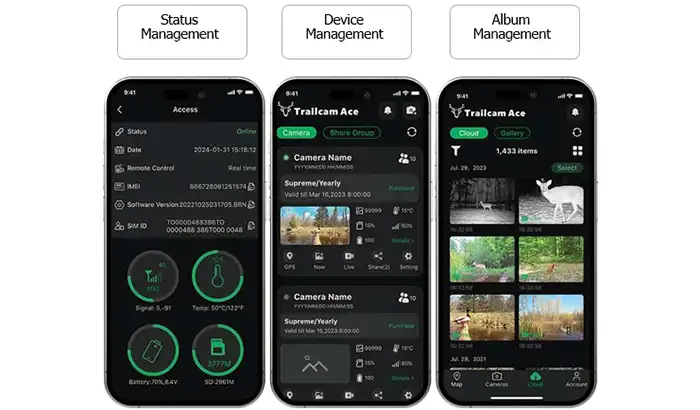

Cloud App System
Intuitive App & Cloud Control

Easily manage albums, remote device configurations, data plan distributions, and instant firmware pushes via iOS/Android apps tailored for B2B fleet management.

ENTERPRISE-GRADE FIELD APPLICATIONS

Cattle Farm & Ranch Security

Perfect for large-scale livestock and asset protection. Networked deployment provides instant wireless alerts on theft or herd anomalies, minimizing perimeter manual checks.

Wildlife Research & Ecological Studies

Trusted by forestry departments and conservation organizations globally. 940nm absolute invisible LEDs capture natural behaviors without altering wildlife patterns.

B2B Proven Success Study

Global Case Study: Over 500+ units of T4.0-CS were deployed across a North American forestry asset group, leading to an 85% drop in maintenance logistics via successful Cloud OTA management.

GET TOP RESULTS WITH THE T4.0-CS TRAIL CAMERA

  • Business Growth
  • 0.2s Trigger Time
  • 32MP Image Quality
  • 4G LTE Network
Growth and revenues streams
Unlocking New Potential

4G trail cameras innovate the outdoor industry, offering new revenue streams through smart connectivity, app features, and subscription models, fostering long-term growth.

0.2s Trigger Speed Demo
0.2s Trigger Time

Willfine T4.0-CS ensures rapid response with a 0.2-second trigger time, capturing every critical moment without delay. Perfect for dynamic outdoor environments, it delivers unparalleled speed for precise monitoring and data collection.

32MP Clarity Sample
32MP Image Quality

Capture stunningly detailed photos with 32MP resolution, delivering crystal-clear images that enhance wildlife monitoring, security, or outdoor exploration with exceptional clarity and precision.

4G LTE High Speed Cellular Network
4G LTE Network

Experience seamless connectivity with 4G LTE support, enabling fast and reliable data transmission for real-time image and video updates from virtually anywhere.

COMMERCIAL SUPPLY INFO

MOQ Sample order: 1 unit supported.
OEM/ODM brand customization starts at 500 units.
Lead Time Samples: 3-5 working days.
Mass bulk OEM production: 15-25 days.
Standard Packaging Standard Package Includes (1x Unit):
  • 1x T4.0-CS Trail Camera
  • 1x High-Gain 4G Antenna
  • 1x Pre-activated SIM Card
  • 1x Heavy-Duty Mounting Strap
  • 1x USB Cable
  • 1x Instruction Manual
*Custom high-end gift box design and custom artwork layout available for private labels.

COMPLIANCE & TESTING EVIDENCE

Our manufacturing facility guarantees global market compliance. Strict batch testing ensures stable operations upon arrival at destination channels.

📥 Downloads & Technical Docs

Get official specs, full catalog, and user manuals for your procurement evaluation:

PRODUCT SPECIFICATIONS (TECHNICAL DETAIL)

  • Effective Pixels2560×1920 (4:3 aspect ratio native)
  • Day/Night ModeYes (Automatic IR cut filter sensor switches natively)
  • IR Setting59pcs Invisible 940nm-IR LEDs (Zero‑glow flash)
  • Operating Keys7 Ergonomic Internal Keys
  • Lens OptionsDFOV=60° with F=2.0 / DFOV=100° with F=2.4
  • LCD Screen2.0” TFT, RGB High Definition Display Panel
  • AudioBuilt-in Microphone for clear audio logging
  • Wireless ModuleLTE Cat.4 Modules (Fallback to 2G/3G in select areas)
  • PIR Sensor RangeMaximum coverage up to 20 meters
  • PIR Trigger SpeedUltra-fast 0.2s – 0.4s adjustable latency
  • Picture SizeOptions for 8MP / 12MP / 24MP / 32MP
  • Shooting BurstMulti-shot burst cycle from 1P up to 5P
  • Picture FormatStandard .jpg encoding
  • Video ResolutionFull HD 1080P (1920×1080) / HD 720P
  • Video FormatHigh-compatibility .mov containers
  • Trigger IntervalProgrammable from 4s to 7s minimum lockout
  • Camera + Video ModeYes, sequential capture supported
  • Time Lapse / TimerSupported for scheduled tracking
  • GPS CoordinatesYes, embedded geo-tagging on asset data
  • Memory ExpansionSD Card slot (Supports standard 8GB – 32GB)
  • SD Cycle RecordingON/OFF optional loop recording
  • Power Source12x AA batteries or DC: 12V-2A external input
  • Auto Power OffPower savings auto-sleep in 3 mins under Test mode
  • Data ProtocolSecure HTTP(S) data transmission encryption
  • Operating RangeExtreme -20°C to 55°C deployment rating
  • Waterproof SpecIP66 Certified laboratory weatherproof standard
  • Compliance ListCE / FCC / RoHS official certifications

WHAT WE OFFER FOR GLOBAL PARTNERS


ALL-IN-ONE SOLUTION

Willfine/Your Network Operators

SIM card
Camera

Camera Customization

Cloud Server
Install YOUR Cloud Server

Willfine/Your Cloud System

App

App Customization

Seller Dashboard

Businesses can analyze user and business insights

N+
Mass Production

BUSINESS & MARKET INTELLIGENCE SYSTEM

Data Analytics IntegrationAnalyze market growth dynamics & regional custom firmware opportunities
User Management ControlsPromote scalable cloud architectures and back-end user support controls

MANUFACTURING TECHNICAL SUPPORT

Firmware updatesRoutine platform stability checks, camera cloud firmware patches, and OTA updates.
Remote AssistanceProviding deep-level diagnostic engineering assistance for platform partners.

STEPS FOR CREATING BRANDED HUNTING CAMERAS

  • Step 1

    Requirement Confirmation & Send Requirements

  • Step 2

    Custom Engineering & Lab Prototyping

  • Step 3

    Field Testing & Client Deployment Validation

  • Step 4

    Mass Production & Global Carrier Compliant Shipment

WHY CHOOSE WILLFINE
Top Tier OEM/ODM Partner: Pro Trail Camera Solutions for Security & Research

  • icon-transparent
    300K

    Monthly Production

  • icon-transparent-2
    100+

    R&D Team

  • icon-transparent-3
    28

    Property Rights

  • icon-transparent-4
    30+

    AI Breakthroughs

Serving clients in over 80 countries worldwide

20+ YEARS

Manufacturing experience

1 ST

To integrate GPRS module into hunting camera

1 MILLION+

Loved by outdoor lovers
Key partner to top camera brands
Supporting multiple chip solutions

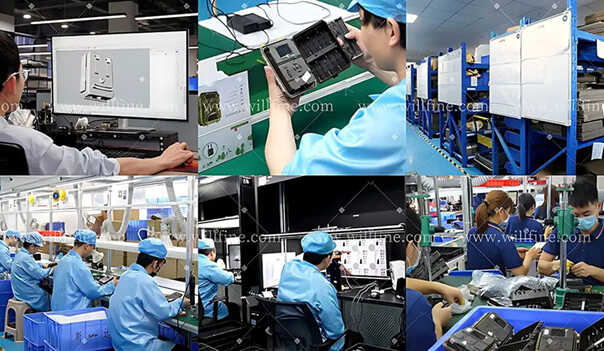

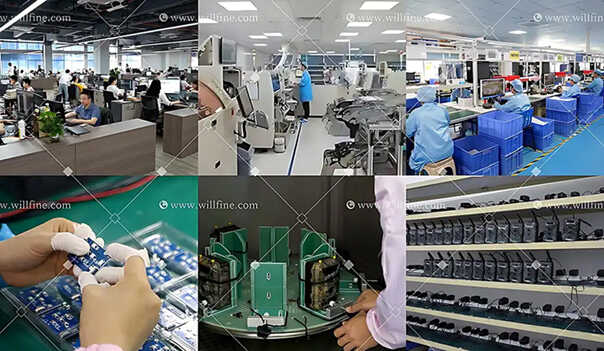

our company and factory team activity

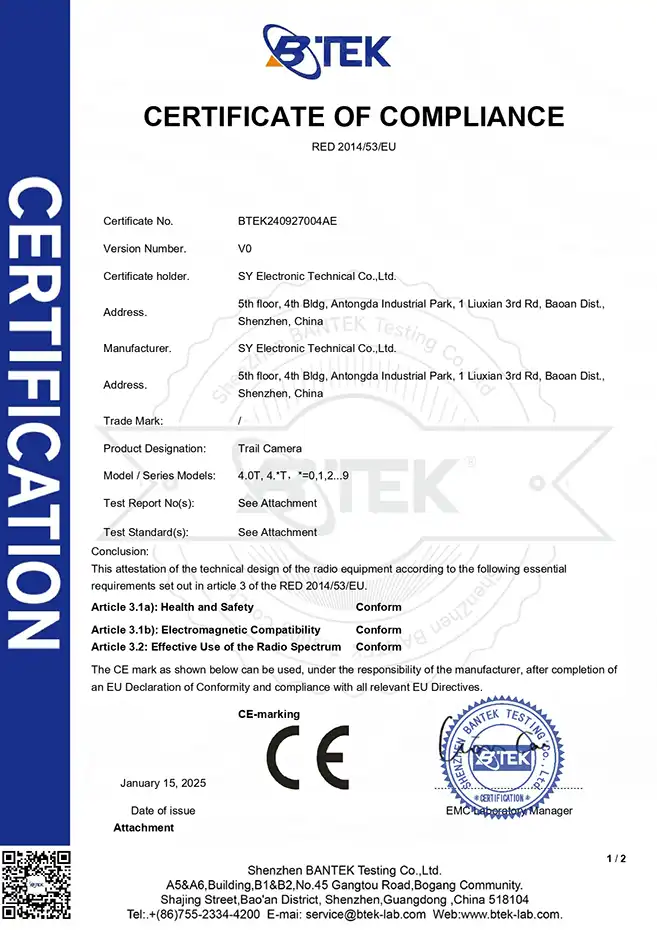

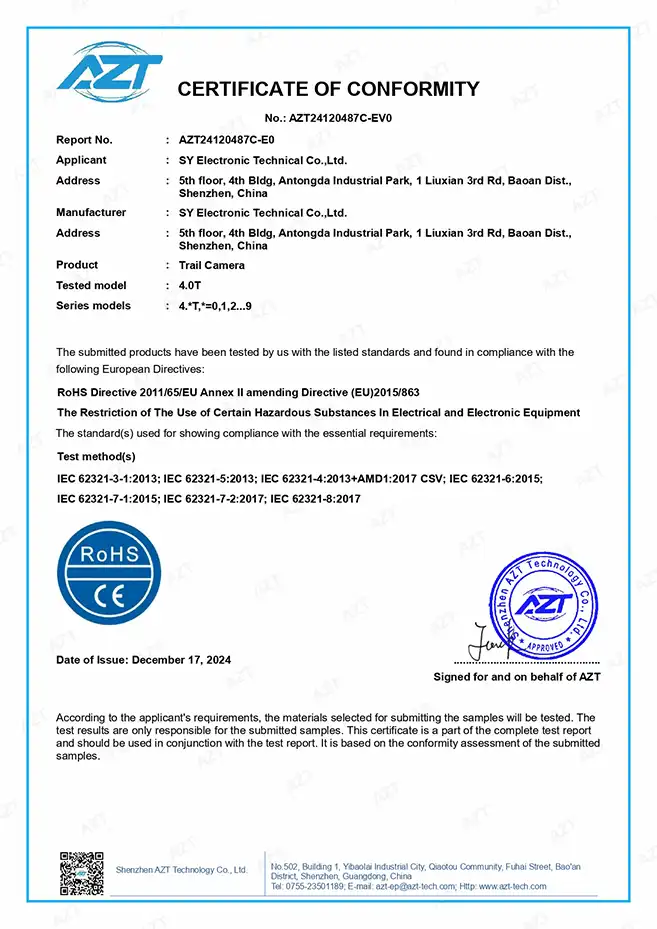

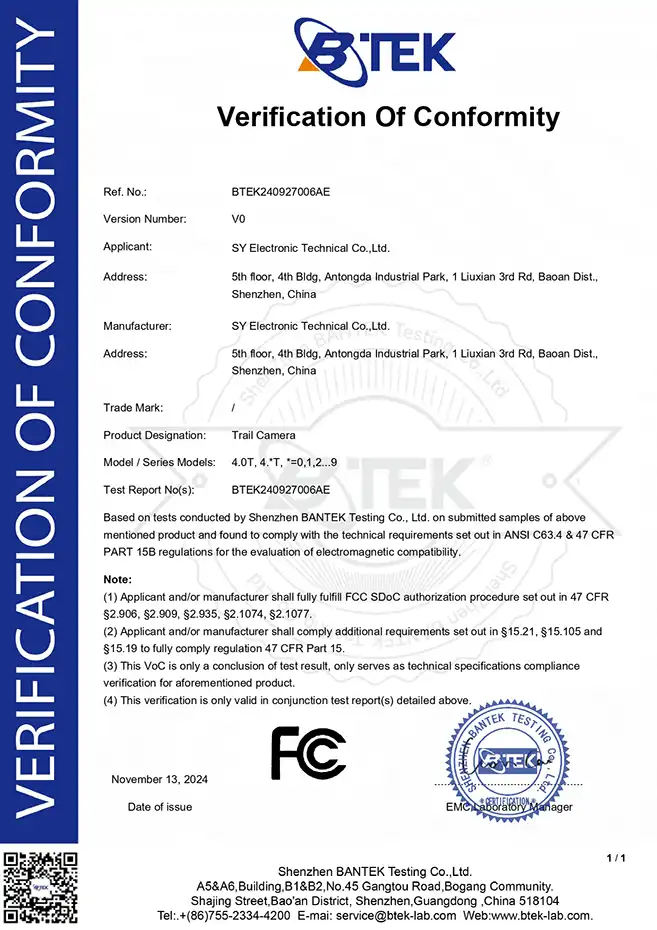

ISO9001-Certifieate No.24CN34512013Q trail cameras CE certificate-Certificate No.BTEK240927004AE trail cameras FC certificate-Ref. No.BTEK240927006AE trail cameras ROHS certificate-Report No.AZT24120487C-E0 BSCI-MONITORING ID:24-0248036 LCTECH-Test Report Number:
LCZP24120152
