Multi-Shot Adaptive Triggering
Programmable software supporting Burst Capture (1P to 5P), pure Time-Lapse intervals, and scheduled operational duty cycles for highly targeted intelligence mapping.
- Home
- >
- All Products
- >
- 4.0P-CS 4G 24MP Trail Camera

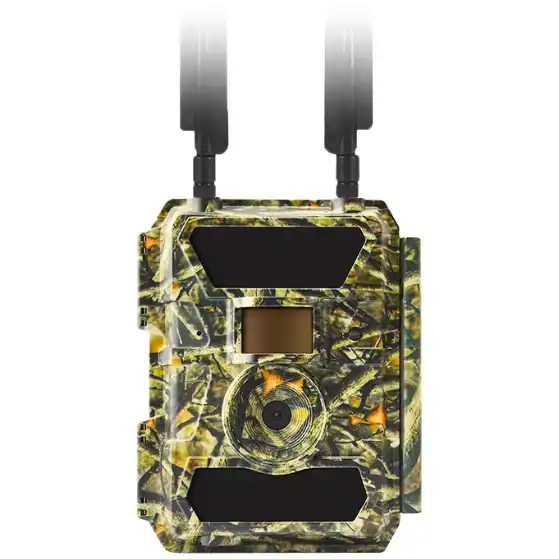

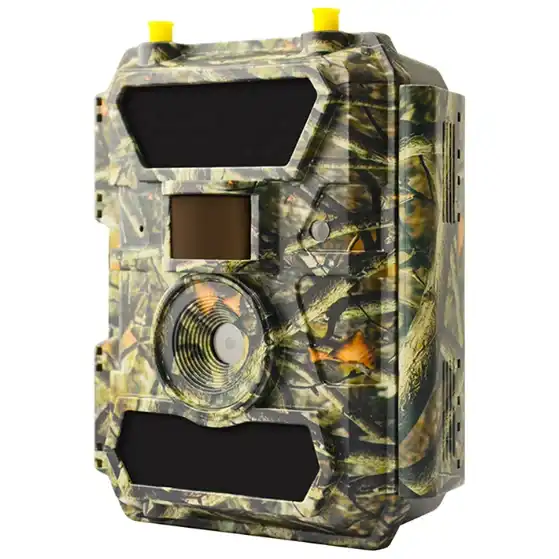

4.0P-CS 4G LTE GAME CAMERA
Industrial Deep OEM/ODM Customization Layer Available
IP66 Rugged Protection + Dual-Antenna 4G LTE
Engineered for uninterrupted remote field operation. IP66 weatherproof casing combined with enterprise dual-antenna signal reinforcement guarantees persistent cloud uploads in low-signal wilderness environments, radically lowering maintenance trip overheads.
Adaptive 24MP HD Imaging + Instant Cellular Telemetry
Fuses crystal 24MP photography with synchronized 1080P audio/video over standard 4G transmission. Empowers tier-1 distributors to white-label a high-premium security and monitoring asset tailored for B2B fleet deployment.
0.2s Trigger Matrix + Invisible 940nm Stealth IR
An ultra-fast 0.2-second response minimizes miss-rates, while the 59-piece 940nm non-glow infrared LED configuration eliminates visual detection. Ensures absolute covert tactical advantage and reliable wildlife analytics.
-
24MP
Ultra-HD Image
-
4G LTE
Dual Antenna Carrier
-
65FT
Detection Range
-
0.2s
Lightning Trigger
-
940nm
Invisible Stealth IR
-
2.0″ TFT
On-site Config Screen
Universal Baseband Integration
Global 4G LTE cellular compatibility verified across 100+ mainstream networks in Europe and North America, supporting optimized regional cloud infrastructure.
Industrial Duty Engineering
Architected for extreme outdoor survivability. Supports high-capacity 12 AA battery configurations or external DC 12V-2A solar grid integration for long-horizon remote tasks.
White-Label App & Server API
Ready-to-deploy cloud ecosystems with comprehensive device clustering, instant push notifications, and customizable data-plan billing parameters for local operators.
TECHNICAL SUPERIORITY OF THE 4.0P-CS FRAMEWORK
- 940nm No-Glow Night Vision
- Dual Antennas
- 24MP Image Quality
- 65°/100° Lens Architecture
940nm No-Glow Night Vision Matrix
Our 59-LED array is structured for strict covert tracking. Emitting a fully invisible 940nm wavelength, it shifts the system from a standard recording asset to an uncompromised covert observer—preventing human vandalism and animal startle responses.
Hardware Diversity Dual Antennas
Engineered with cross-polarized dual antennas to vastly enhance cellular link budget. This ensures stable, low-latency imagery uploads and firmware updates even inside deep canopy or topography-blocked locations.
High-Fidelity 24MP Spatial Resolution
Delivers true-to-life 24MP captures for detailed evidentiary support. Essential for industrial asset identification, wildlife research audits, and clear license plate or facial legal verification.
Adaptive 65° Standard / 100° Wide-Angle Customization
Available in factory-level optical configurations—choose either a precision 60° Standard Lens for targeted trails or a 100° Wide-Angle Lens for expansive farm monitoring. This field adaptability streamlines bidding overhead for diverse regional tenders.
TOTAL COST OF OWNERSHIP (TCO) OPTIMIZATION
How the 4.0P-CS hardware architecture scales to minimize active cellular data consumption and continuous battery replacement overheads for commercial projects.
📊 CELLULAR DATA MANAGEMENT
Equipped with smart bandwidth optimization. Buyers can program the device to compress thumbnail telemetry for rapid push notifications, holding the original raw 24MP HD file locally on the cyclical SD card until remote extraction is forced, cutting operator carrier costs by up to 60%.
| Compression Level | Customizable (Low / Medium / High) |
| Protocol Overhead | Optimized HTTP(S) data packets |
🔋 POWER CONSUMPTION LIFECYCLE
The ultra-low standby power engine enables extensive field permanence. Deployed with 12 AA Alkaline batteries, the system delivers up to 6 months of standby lifetime. Full support for standard DC external ports facilitates seamless matching with field solar sub-systems.
| Standby Duration | Approx. 6 Months (Activity Dependent) |
| External Power Input | DC 12V-2A with Solar System Interface |
4.0P-CS INDUSTRIAL FIELD APPLICATIONS
Delivering robust telemetry and real-time 4G cloud transmission across vertical critical enterprise and ecological deployment zones.
■ Farm & Cattle Ranch Monitoring
Engineered for large-scale remote livestock tracking, cattle farm perimeter checks, and rural gate security. Delivers instant cellular imaging updates, dramatically decreasing manual paddock fuel costs and protecting assets from theft.
■ Wildlife Biology & Ecological Audits
Enables non-invasive bio-diversity tracking. The combination of invisible 940nm black infrared night vision with an ultra-fast 0.2s trigger preserves natural fauna interactions while building accurate population distribution datasets.
■ Forestry Security & Anti-Poaching
Extensively utilized by municipal forest management and park wardens. Built-in GPS position metadata tracks critical illegal logging areas, enabling law enforcement to act immediately on wireless alarm signals.
COMMERCIAL SUPPLY INTEGRATION
| OEM/ODM MOQ | Custom firmware flashing, custom GUI boot logos, and custom structural branding open at 500 units. Working validation samples supported from 1 unit. |
| Production Lead Time | Engineering Samples: 3-5 working days. Standard Mass Volume OEM Batches: 15-25 days. |
| Official Accessories |
Standard Box Contents:
|
COMPLIANCE & INDUSTRIAL COMPLIANCE
Manufactured under rigorous deep ODM quality supervision protocols, the 4.0P-CS design undergoes thorough hardware layer verification to adhere fully to critical global importation structures.
CE Approved
FCC Laboratory Certified
RoHS Directive Compliant
IP66 Weather-Sealed Standard
PRODUCT SPECIFICATIONS (TECHNICAL DATA SHEET)
- Cellular Baseband
LTE Cat.1 Industrial IoT Engine (Optimized for Low TCO & Fleet Deployment)
- Network Protocols
Secure HTTP(S) / FTP / SMTP Encrypted Telemetry Streams Supported
- Geospatial Tracking
Integrated GPS Location Mapping & Node Metadata Embedding
- Trigger Velocity
0.2s Lightning-Fast Trigger Speed
- Trigger Interval
4s – 7s Ultra-Short Recovery Cycle
- PIR Sensor Array
Multi-zone Detection Field: 45° / 80° Adaptive Matrix
- PIR Range
65ft (20m) Real-World Target Coverage
- Lens FOV Options
Factory Configured: DFOV=60° (F=2.0) or DFOV=100° (F=2.4) Wide-Angle
- Day/Night Switch
Auto-Adaptive Mechanical IR-Cut Filter (Removes at Night Automatically)
- IR Flash Array
59pcs Heavy-Duty Invisible 940nm Stealth IR LEDs (Zero Glow)
- Image Dimensions
8MP / 12MP / 24MP High-Fidelity Options (Max Resolution: 5440×4080)
- Video Resolution
FHD 1080P / HD 720P @30fps with Synchronized High-Gain Audio
- Video Encoding
Standard MP4 / MOV formats supported
- Capture Modes
Photo, Video, Photo + Video (Hybrid Adaptive Capture)
- Burst Captures
Programmable 1P to 5P Continuous Sequential Shots
- Time Lapse
Programmable Interval Controls Pre-configured
- Memory Architecture
Standard SD Expansion up to 128GB (Auto-Cycle Overwrite Optional)
- Power Framework
Battery: 9V (12x AA Alkaline) | External Grid Input: DC 12V-2A with Solar System Interface
- LCD Interface
2.0” TFT RGB Internal Configuration Screen with 7 Operating Keys
- Climatic Tolerance
Operating Temperature: -20°C to 60°C | Storage Temperature: -25°C to 65°C
- Ingress Protection
IP66 Industrial Dust & Weatherproof Certified
- Global Compliance
CE, FCC, RoHS Fully Certified
TECHNICAL DOCUMENTATION & RESOURCES
Download official technical specification sheets and quick operational user guides for project evaluation.
FREQUENTLY ASKED QUESTIONS (FAQ)
Common queries regarding OEM customization, cellular network setup, and commercial supply.
Does the 4.0P-CS support regional 4G networks in Europe and North America?
Yes. Built on an enterprise LTE Cat.1 module, we offer pre-configured regional baseband modules tailored for North American (AT&T, T-Mobile) and European/APAC carrier bands to guarantee instant plug-and-play field deployment.
What is the MOQ for custom OEM/ODM orders?
Branded housing silkscreening, custom boot logos, and custom firmware flashing start at an MOQ of 500 units. Engineering and field-testing samples are supported starting from 1 single unit.
Can we integrate the camera feed into our own cloud server/App?
Absolutely. We provide open API documentation and support HTTP(S), FTP, and SMTP communication protocols, allowing smooth integration into your proprietary backend platform or customized mobile app.
How long does it take to ship trial samples?
Standard validation samples are processed and dispatched within 3-5 business days directly from our Shenzhen facility with full testing protocols included.
