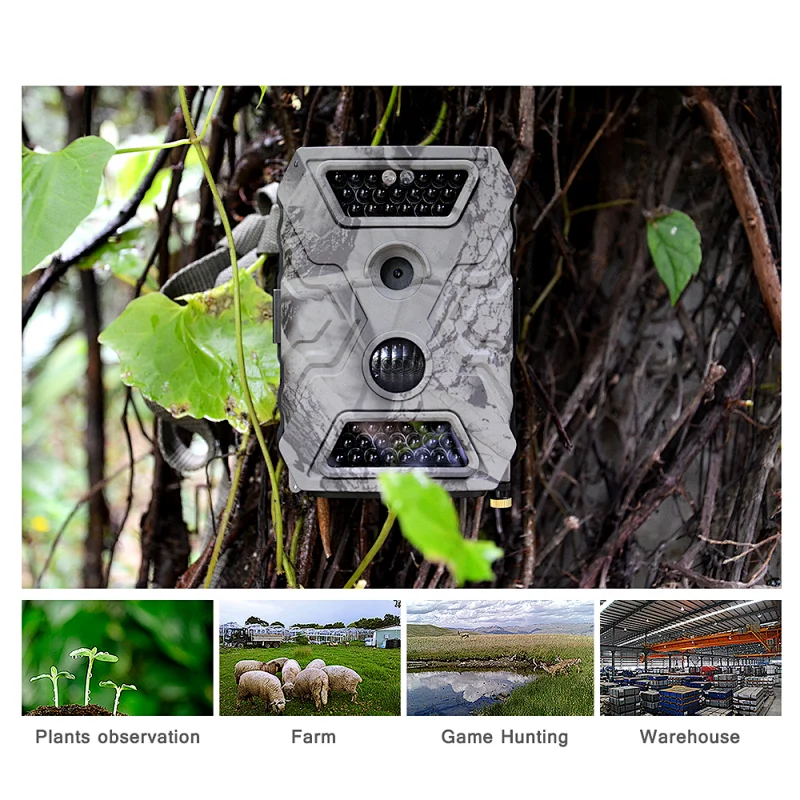

This is a mature gprs wireless trail camera originally from Willfine (also known as SiFar, SY Technical).
It has been selling in each market many years now, and helped thousands of customers:
1>to capture & transmit motion detected photos as records & remote alarms;
2> to observe animals, plants for research & monitoring purpose;
3> to protect their farms, front doors, backyards, garage, warehouse, construction sites and other properties.
SPECIFICATIONS
Day/Night Mode
Yes
Picture size
5MP/8MP/12MP
IR Setting
Top: 19 LED, Foot: 21LED
Shooting Numbers
1-7
IR arrange
20m
Video resolution
1080P, 720P, 640x480, 320x240
Lens
F=3.0; FOV=52°; Auto IR-Cut
Video Length
1-60sec. Programmable
LCD Screen
2” TFT, RGB, 262k
Trigger Time
0.8-1s
PIR Sensitivity
High / Normal / Low optional
Trigger Interval
2s-5s
PIR distance
12m – 15m
Camera + Video
Yes
PIR Angle
90°
Time Lapse
Yes
Operating enviroment
IP54, Tem-20°C to 60°C
Stand-by Time
4~6 months (4×AA~8×AA)
Main Features
Programmable 5/8/12 Megapixel high-quality resolution; Especially designed function buttons for user’s conveniences; 40 pcs IR LEDs for flash range as 20 meters; Adjustable PIR sensitivity;
Multi-shot pictures (up to 7 pics per trigger); Impressive quick trigger time: 0.8-1s (GPRS trigger time is 1.2s); Support standard 6~12V/ 1~2A solar panel; Color pictures during day; black and white at night.
Adjustable delay between motions; With 8 AA alkaline batteries, the longest standby time is up to 6 months; Available operation temperature: -20℃ to 60℃; Time Lapse for automatically and constantly shooting of pictures/videos at preset interval; With specified Timer, camera can be programmed to work only during preset time period every day;
Photo stamp of Camera ID, date, time, temperature and moon phase to help you identify where and when the camera shot photos; Built-in 2.0"TFT color screen to review photos and videos in camera. Audio Recording brings you heart pumping like ever before; Two different TV OUT settings help you review photos/videos even from Television.
With MMS/GPRS/SMTP/FTP function, camera can transmit photos to 1-4 preset mobile phones and 1-4 email per trigger. SMS to realize various configurations; SMS to enable camera to shoot a photo and send back instantly; Support most 2G and most 3G SIM cards to get real-time photos;

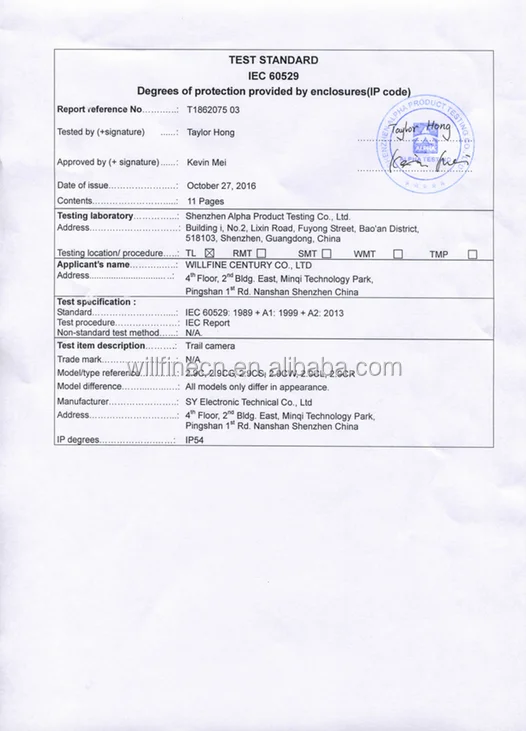

Certifications
Detailed Images

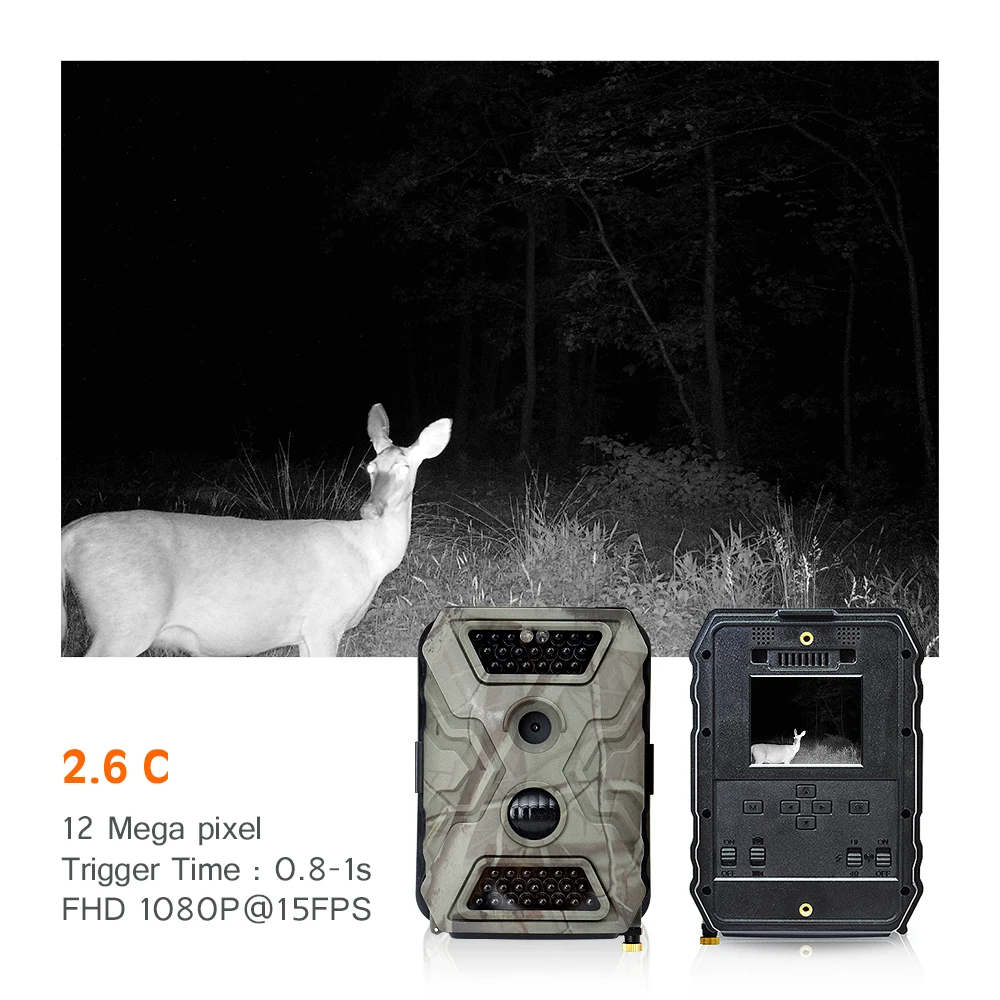

Front & Back View

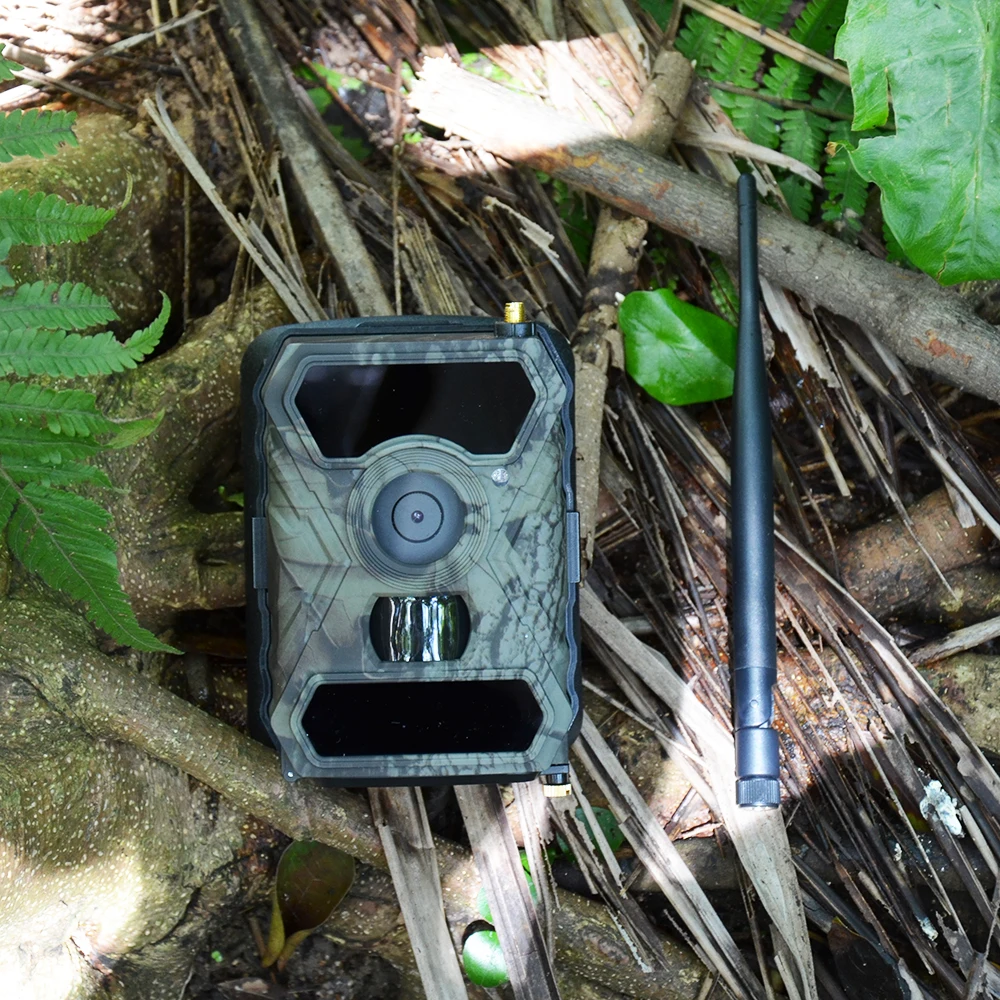

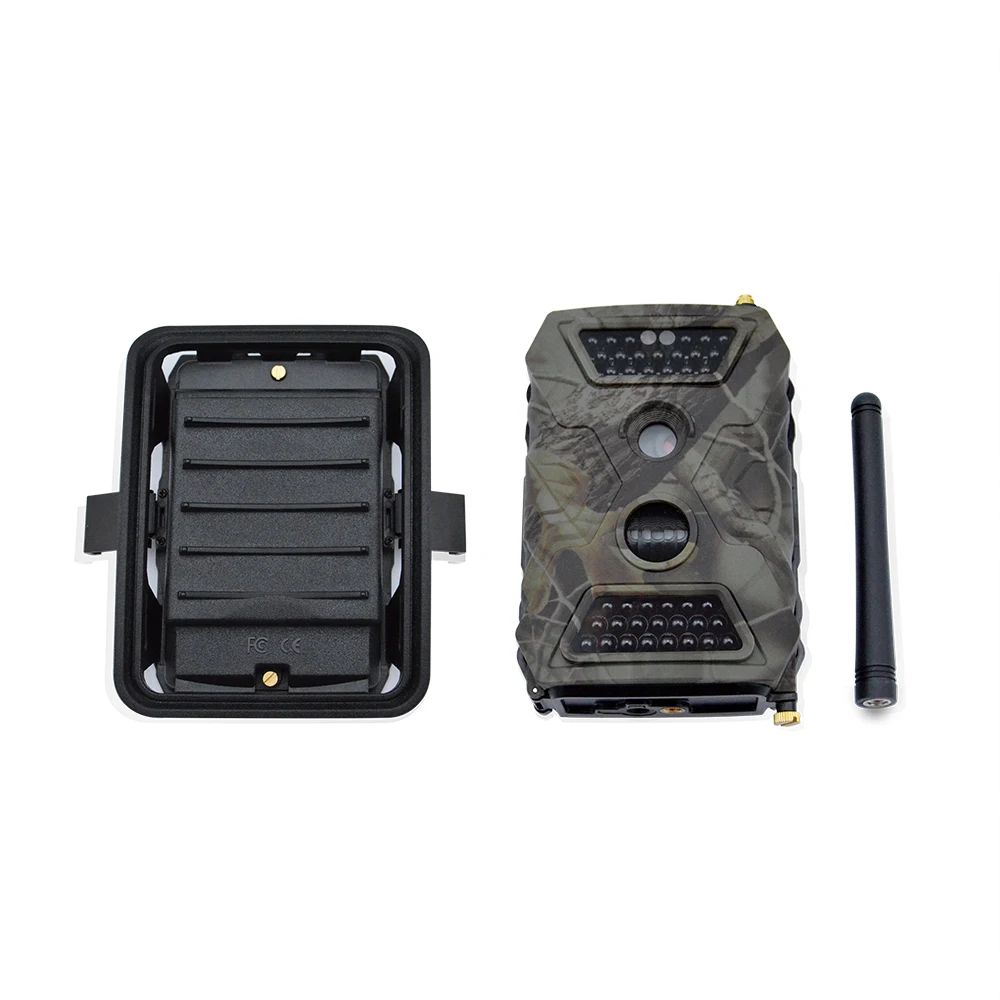

Three parts: antenna, front house & back case
High functioning antenna for best signal receiving
Seperated housing part for easy holding & mounting

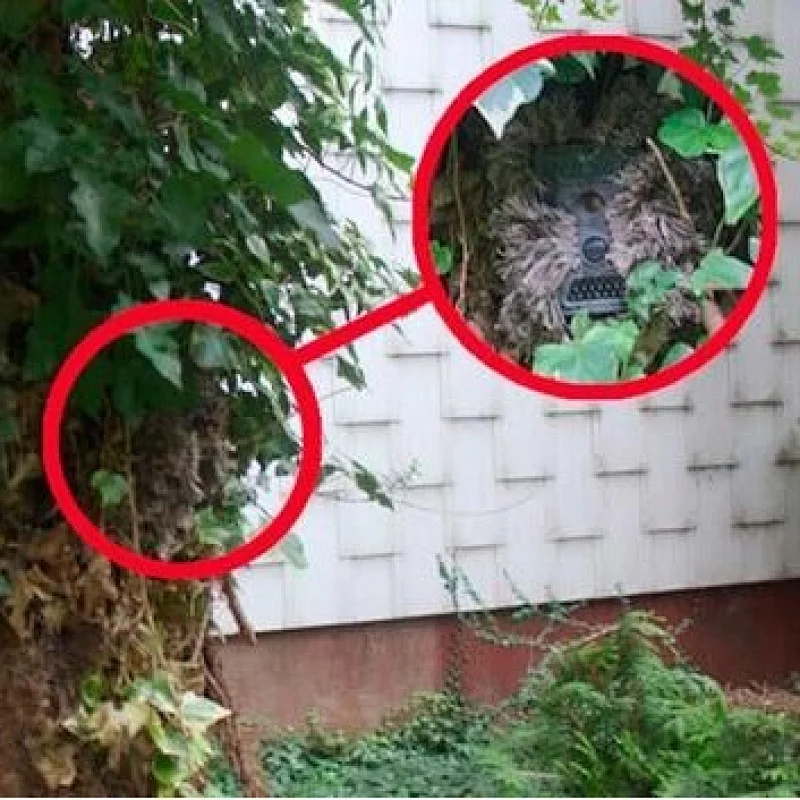

Camoflage housing for better hidden purpose
Sealed back battey case for safe extra power supply

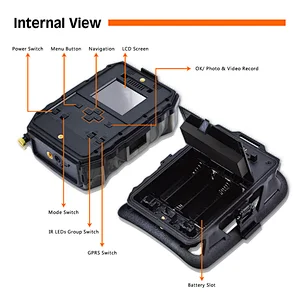

Inner View
LCD Screen, function buttons, battery slot, buckles
Color screen to review photos and videos in camera
Well displayed menu layout for easy programming
Especially designed buttons for user’s conveniences
Smartly designed buckles to lock camera firmly

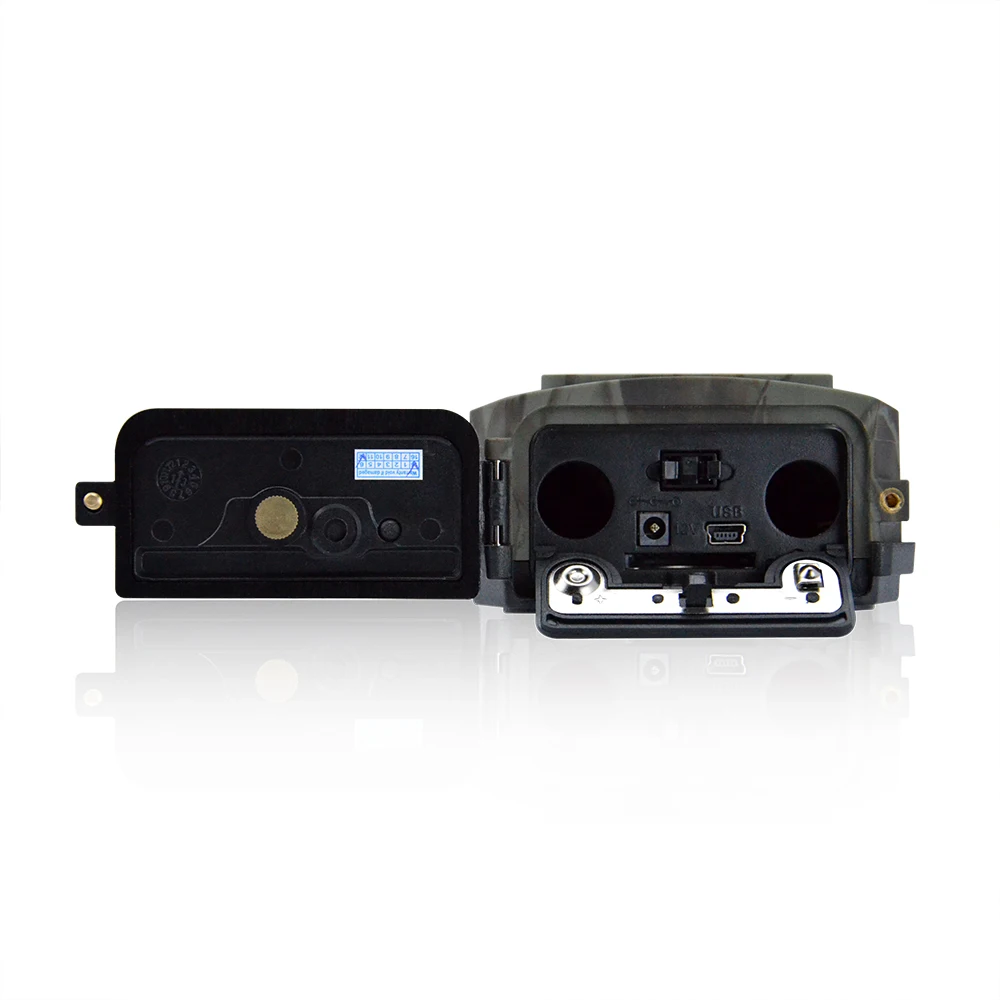

Bottom View
Bottom cover, battery slot, battery slot cover, DC in port, TV out port USB slot, SD card slot
Seperate power supply space for independant work
Ports & slots at bottom for better waterproof purpose
Accesses at bottom for more convinient connection
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Factory visit & investigation.
After-Sales Service
* Training to instal & use the camera.
* Engineers available to technical support timely.
* Repair service available all the time.
Packing & Delivery
Packaging
Included
USB cable ×1 TV cable ×1 Bandage ×1 User’s manual
Camera ×1 Antenna ×1
Unit packing
N.W.: 0.3 kg G.W.: 0.55 kg Neutral Box packing 160×130×120mm
Carton packing
16 boxes/ctn N.W.: 10 kg G.W.: 11 kg Ctn.: 51×35×29cm
